HMK 370LC D

has been designed by HİDROMEK engineers after careful evaluation of working conditions and operator demands and has been released on the market afterward as a crawler excavator that meets all expectations of users. All fabricated parts including boom, arm, bucket, undercarriage, lower and upper frames have been designed and produced as heavy duty type. HMK 370LC HD offers its operator maximum efficiency by providing trouble-free and continuous operating performance even in the toughest of working conditions. When such rigorous care at the design stage of HMK 370LC HD is combined with worldwide approved components and state-of-the-art production technologies, the outcome has been a high performance, durable, comfortable, and well-balanced product with low maintenance and operation costs.

TECHNICAL INFORMATION

Engine
BrandIsuzu
ModelAH-6HK1X
Number of cylinders6
Bore x Stroke115 x 125 mm
Displecement7790 cc
Maksimum Power284 HP @ 1900 rpm
Maksimum Torque1136 Nm @ 1500 rpm
Hydrualic System
TypeClosed Center System
Pompa TypeVariable Displecement Piston
Main Pump Flow Rate2 x 290 lt
Pilot Pump Flow Rate28 lt/min
System Pressure
Attachment330 kgf/cm²
Power Boost350 kgf/cm²
Travel350 kgf/cm²
Swing 280 kgf/cm²
Pilot 40 kgf/cm²
Swing
TypeAxial Piston Hydromotor
Swing Speed9.1 rpm
Driving Speeds
Maximum Traction Force30.540 kgf
High Speed4.9 km/h
Low Speed2.9 km/h
Dimensions
Vertical Operating Height21.37 m
Bom Dimension10.9 m
Middle Arm Dimension2.5 m
Arm Dimension6.2 m
Maximum Attachment Weight2.600 kg
Filling Capacities
Engine Oil36 lt
Radiator39 lt
Fuel Tank555 lt
Hydrualic Tank260 lt
Hydrualic System
480 lt
Swing Reduction7.2 lt
Travel Reduction2x10 lt
Operating Weight
Standard Machine44.500 kg

DOWNLOAD  BROCHURE

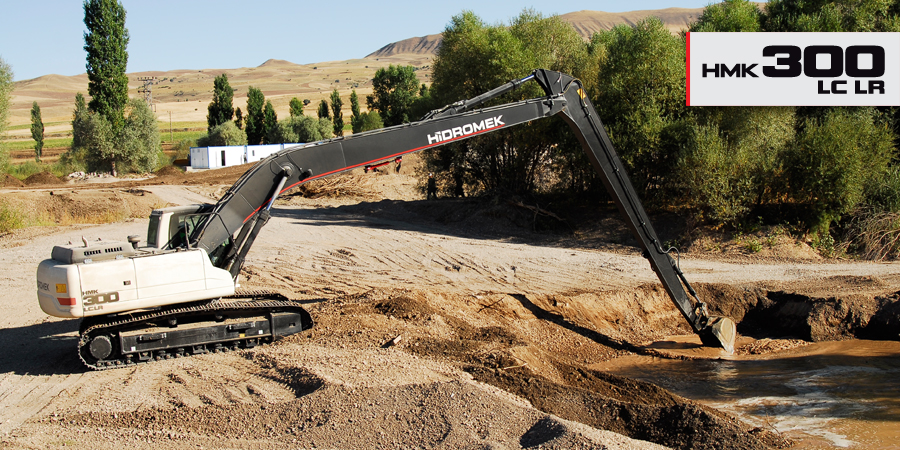

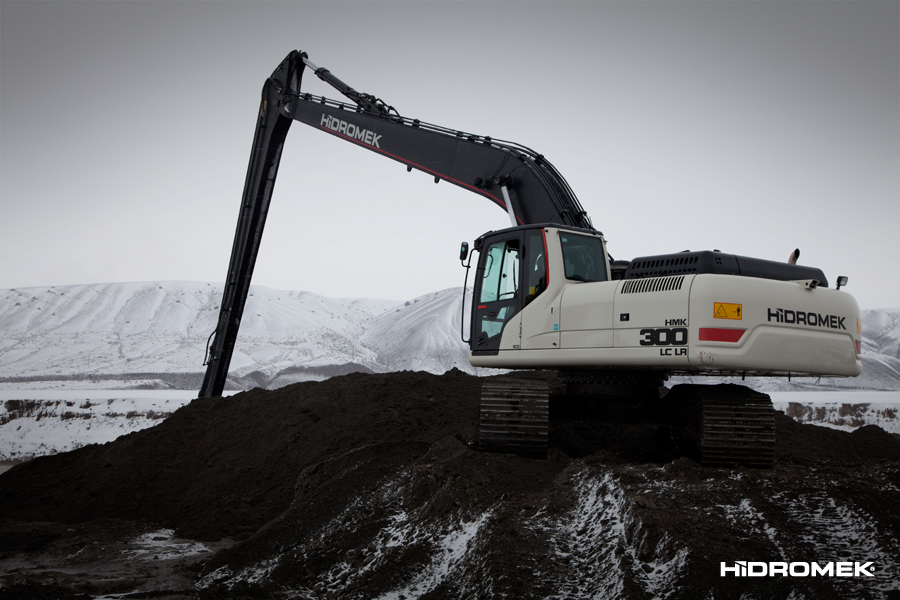

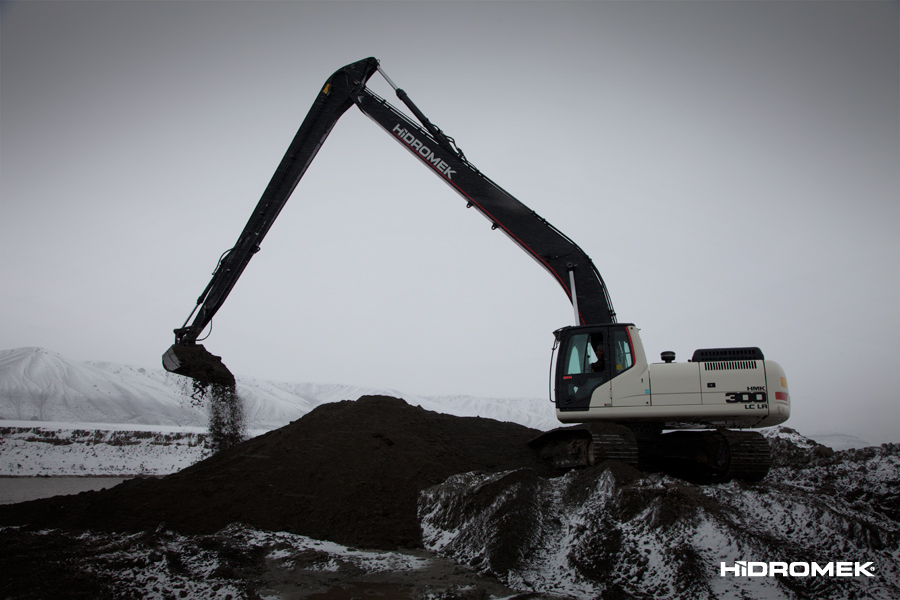

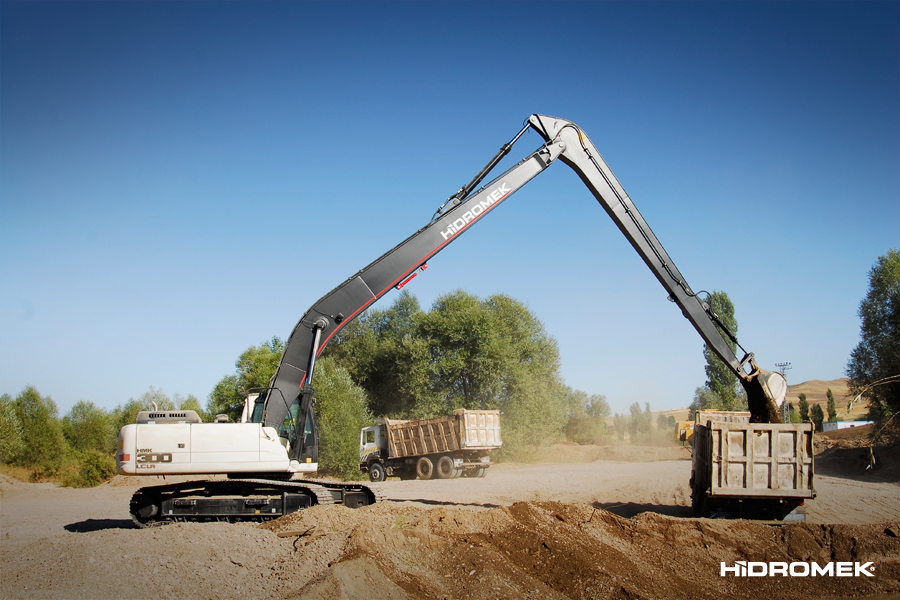

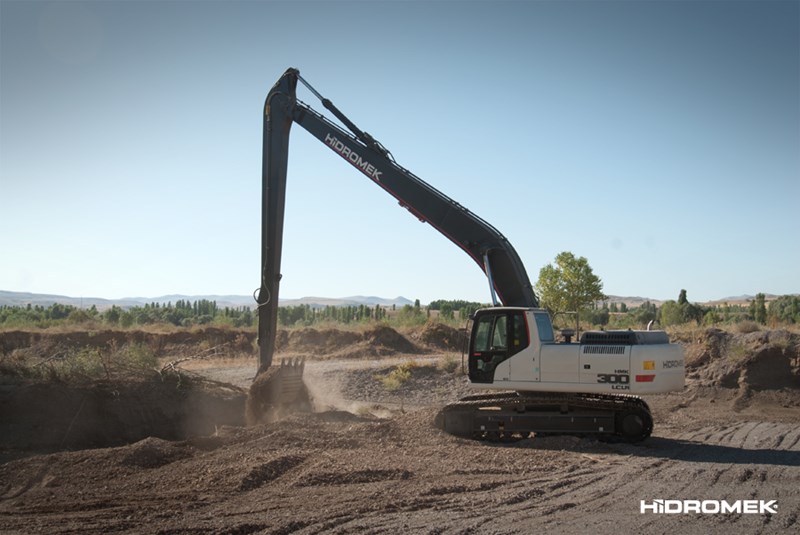

HMK 300 LC LR

HIDROMEK, which find solutions for different types of applications, satisfy the expectation of the clients on this segment with its speacial model 300 LC LR designed  for ditch cleanings and sand quarries. GEN Series 300 LC LR introduces innovations such as improved performance, ease of control and versatility. It allows the operator to have perfect command ability and reliability and ensures low fuel consumption, easy maintenance and operator comfort. Along with other pieces of equipment, it is the leader in its class.

TECHNICAL INFORMATION
Engine
BrandIsuzu
ModelAH-6HK1X
Number of cylinders6
Bore x Stroke115 x 125 mm
Displecement7790 cc
Maximum Power216 HP @ 1800 rpm
Maximum Torque940 Nm @ 1500 rpm
Hydrualic System
TypeClosed Center System
Pump TypeVariable Displecement Piston
Main Pump Flow Rate2 x 259 lt
Pilot Pump Flow Rate27 lt/min
System Pressure
Boom Lifting Down150 kgf/cm²
Boom Lifting Up330 kgf/cm²
Arm Opening330 kgf/cm²
Arm Closure240 kgf/cm²
Travel350 kgf/cm²
Swing 285 kgf/cm²
Pilot Control40 kgf/cm²
Bucket Opening 240 kgf/cm²
Bucket Closure 240 kgf/cm²
Swing
TypeAxial Piston Hydromotor
Swing Speed10.2 rpm
Driving Speeds
Maximum Traction Force26.070 kgf
High Speed5.1 km/h
Low Speed2.9 km/h
Digging Performance
Standard Bucket Capacity0.60 m³
Digging Depth14.20 m
Digging Reach at Ground Level18.36 m
Digging Reach12.70 m
Digging Height14.98 m
Bucket Digging Force (ISO)7.300 kgf
Arm Crowd Force (ISO)5.400 kgf
Bom Dimension10.3 m
Arm Dimension7.8 m
Filling Capacities
Engine Oil36 lt
Radiator36 lt
Fuel Tank480 lt
Hydrualic Tank209 lt
Hydrualic System
400 lt
Swing Reduction7 lt
Travel Reduction2x9.5 lt
Operating Weight
Standard Machine34.950 kg
